This document show steps of installation and setting up Single Node Oracle 11g Release 2 (11.2.0.4.0) RAC on HP-UX Itanium (11.31) server.

1. Sample /etc/hosts file will be as below.

######################Public################

xxx.xx.xx.26 drpweb1.xx.com drpweb1

###########################################

###################Private##################

xx.0.0.9 drpweb-prv

###########################################

#########################VIP###############

xxx.xx.xx.28 drpweb1-vip.xx.com drpweb1-vip

###########################################

#########################scan##############

xxx.xx.xx.29 drpweb-scan.xx.com drpweb-scan

###########################################

2. deconfigure NTP

When using Oracle RAC you have to make a decision whether to configure NTP, or make sure it is not configured so the Oracle Cluster Time Synchronization Service (ctssd) can synchronize the times of the RAC nodes. To deconfigure NTP, do the following.

# /sbin/init.d/xntpd stop

# mv /etc/ntp.conf /etc/ntp.conf.bk

3. Create OS Groups

/usr/sbin/groupadd -g 700 oinstall

/usr/sbin/groupadd -g 701 dba

/usr/sbin/groupadd -g 702 oper

/usr/sbin/groupadd -g 703 asmdba

/usr/sbin/groupadd -g 704 asmoper

/usr/sbin/groupadd -g 705 asmadmin

4. Create OS user

#useradd -m -u 108 -g oinstall -G dba,oper,asmdba -d /home/oracle oracle

#useradd -m -u 109 -g oinstall -G dba,asmdba,asmoper,asmadmin -d /home/grid grid

5. Setting O/S user password

# passwd grid

Changing password for grid

New password:

Re-enter new password:

Passwd successfully changed

# passwd oracle

Changing password for oracle

New password:

Re-enter new password:

Passwd successfully changed

6. Setting kernel parameters

On ALL RAC nodes, verify that kernel parameter's value greater than or equal to recommended values.

ksi_alloc_max : 32768

executable_stack : 0

max_thread_proc : 1024

maxdsiz : 1073741824 (1gb)

maxdsiz_64bit : 2147483648 (2gb)

maxfiles : 1024

maxfiles_lim : 32767

maxssiz : 134217728 (128mb)

maxssiz_64bit : 1073741824 (1gb)

maxuprc : 3686

msgmni : 4096

msgtql : 4096

ncsize : 35840

nflocks : 4096

ninode : 34816

nkthread : 7184

nproc : 4096

semmni : 4096

semmns : 8192

semmnu : 4096

semvmx : 32767

shmmax : 1073741824

shmmni : 4096

shmseg : 512

tcp_largest_anon_port : 65500

udp_larget_anon_port : 65500

6.1 Check kernel parameter by following command:

# kctune -d ksi_alloc_max

Tunable Value Expression Changes

Description

ksi_alloc_max 33600 Default Immed

Maximum number of queued signals pending on the system

...............

6.2 Setting Parameters (Soft & Hard)

# kctune maxssiz=134217728

# kctune maxuprc=3686

# kctune msgmni=4096

# kctune msgtql=4096

# kctune ncsize=35840

# kctune maxfiles_lim=63488

# kctune ninode=34816

# kctune semmni=4096

# kctune semmns=8192

# kctune semmnu=4092

# kctune -s shmmni=4096

# kctune -s shmseg=512

# kctune -s maxfiles=16384

# kctune -s maxfiles_lim=65536

# kctune -s maxssiz=134217728

7. Patch requirement for HP-UX 11i V3 (11.31) Itanium

PHCO_43503 11.31 diskowner(1M) cumulative patch

PHCO_41479 11.31 Disk Owner Patch

PHKL_38038 VM patch - hot patching/Core file creation directory

PHKL_38938 11.31 SCSI cumulative I/O patch

PHKL_40941 Scheduler patch: post wait hang

PHSS_36354 11.31 assembler patch

PHSS_37042 11.31 hppac (packed decimal)

PHSS_37959 Libcl patch for alternate stack issue fix (QXCR1000818011)

PHSS_39094 11.31 linker + fdp cumulative patch

PHSS_39100 11.31 Math Library Cumulative Patch

PHSS_39102 11.31 Integrity Unwind Library

PHSS_38141 11.31 aC++ Runtime

PHSS_39824 - 11.31 HP C/aC++ Compiler (A.06.23) patch

PHKL_40208,PHKL_40372 - To avoid node evictions

PHCO_41479 (or late) 11.31 character device files control patch

PHKL_39773 - only require if want to use VERITAS file system 5.0

PHSS_39824,PHSS_39826 - C/aC++ compiler patch

Gcc 4.2.3 or later -Gcc compiler

X11MotifDevKit.MOTIZ21-PRG

HPUX JDK 6.0.05,HPUX 5.0.15 - JDBC/OCI dirver

gettext-0.19.5-ia64-11.31

libiconv-1.14-ia64-11.31

bash-4.3.033-ia64-11.31

termcap-1.3.1-ia64-11.31

7.1 Patch requirement Check

>>To determine whether a patch is installed, enter a command similar to the following:

# /usr/sbin/swlist -l patch | grep PHSS_37959

>>To list all installed patches, enter the following command:

# /usr/sbin/swlist -l patch | more

>>To determine whether a bundle, product, or fileset is installed:

# /usr/sbin/swlist -l product | more

# /usr/sbin/swlist -l bundle | more

# /usr/sbin/swlist -l fileset | more

>> Compiler Check

# /usr/sbin/swlist -l product |grep -i compiler

7.2 Patch Installation

# swinstall -s /tmp/oraclesoft/gettext-0.19.5-ia64-11.31.depot

# swinstall -s /tmp/oraclesoft/libiconv-1.14-ia64-11.31.depot

# swinstall -s /tmp/oraclesoft/bash-4.3.033-ia64-11.31.depot

# swinstall -s /tmp/oraclesoft/termcap-1.3.1-ia64-11.31.depot

8. Create Required Symbolic/Soft Links

#ln -s /usr/bin/ssh /usr/local/bin/ssh

#ln -s /usr/bin/scp /usr/local/bin/scp

Below symbolic links are required only if Motif 2.1 development Environment package (X11MotifDevKit.MOTIF21-PRG) is not installed.

Check [X11MotifDevKit.MOTIF21-PRG] is exists ?

#swlist -l product |grep -i X11Motif*

if not exists then-

#cd /usr/lib

ln -s libX11.3 libX11.sl

ln -s libXIE.2 libXIE.2.sl

ln -s libXext.3 libXext.sl

ln -s libXhp11.3 libXhp11.sl

ln -s libXi.3 libXi.sl

ln -s libXm.4 libXm.sl

ln -s libXp.2 libXp.sl

ln -s libXt.3 libXt.sl

ln -s libXtst.2 libXtst.sl

9. Create Grid Home Directory

# mkdir -p /u01/app/grid

# mkdir -p /u01/app/11.2.0.4.0/grid

# chown -R grid:oinstall /u01

# chmod -R 775 /u01

>> Grid user profile permission

$ chmod 775 .profile

>>Grid Profile Setting/Editing

$vi .profile

# Set up the shell environment:

set -u

trap "echo 'logout'" 0

stty erase ^?

set -o vi

# Set up the shell variables:

EDITOR=vi

export EDITOR

export HISTFILE=$HOME/.sh_history

export PS1="$(/usr/bin/whoami)@$(/usr/bin/hostname) [\$PWD]$"

##Grid Environment:##

umask 022

export GRID_HOME=/u01/app/11.2.0.4.0/grid

export ORACLE_BASE=/u01/app/grid

export ORACLE_HOME=$GRID_HOME

export ORACLE_SID=+ASM1

export PATH=$ORACLE_HOME/bin:$PATH

TZ=GMT6

export TZ

>> Grid user profile Load

$ . ./.profile

11. Create grid Inventory Directory

# mkdir -p /u01/app/oraInventory

# chown -R grid:oinstall /u01/app/oraInventory

# chmod -R 775 /u01/app/oraInventory

12. Create oracle BASE Directory

# mkdir -p /u02/app/oracle/product/11.2.0.4.0/dbhome_1

# chown -R oracle:oinstall /u02

# chmod -R 775 /u02

>> Oracle user profile permission

$ chmod 775 .profile

>>Oracle user Profile Setting/Editing

# Set up the shell environment:

set -u

trap "echo 'logout'" 0

stty erase ^?

set -o vi

# Set up the shell variables:

EDITOR=vi

export EDITOR

export HISTFILE=$HOME/.sh_history

export PS1="$(/usr/bin/whoami)@$(/usr/bin/hostname) [\$PWD]$"

## Set up Oracle Environment##

umask 022

export ORACLE_BASE=/u02/app/oracle

export ORACLE_HOME=$ORACLE_BASE/product/11.2.0.4.0/dbhome_1

export ORACLE_SID=drpweb1

export PATH=$ORACLE_HOME/bin:$PATH

TZ=GMT6

export TZ

>> Oracle user profile Load

$ . ./.profile

13. View available disks for oracle ASM

# ioscan -kfNnC disk

Class I H/W Path Driver S/W State H/W Type Description

===================================================================

disk 10 64000/0xfa00/0x6 esdisk CLAIMED DEVICE HP IR Volume

/dev/disk/disk10 /dev/disk/disk10_p2 /dev/rdisk/disk10 /dev/rdisk/disk10_p2

/dev/disk/disk10_p1 /dev/disk/disk10_p3 /dev/rdisk/disk10_p1 /dev/rdisk/disk10_p3

disk 12 64000/0xfa00/0x7 esdisk CLAIMED DEVICE TEAC DVD-ROM DW-224EV

/dev/disk/disk12 /dev/rdisk/disk12

disk 19 64000/0xfa00/0x14 esdisk CLAIMED DEVICE 3PARdataVV

/dev/disk/disk19 /dev/rdisk/disk19

disk 20 64000/0xfa00/0x15 esdisk CLAIMED DEVICE 3PARdataVV

/dev/disk/disk20 /dev/rdisk/disk20

disk 26 64000/0xfa00/0x16 esdisk CLAIMED DEVICE 3PARdataVV

/dev/disk/disk26 /dev/rdisk/disk26

disk 27 64000/0xfa00/0x17 esdisk CLAIMED DEVICE 3PARdataVV

/dev/disk/disk27 /dev/rdisk/disk27

disk 28 64000/0xfa00/0x18 esdisk CLAIMED DEVICE 3PARdataVV

/dev/disk/disk28 /dev/rdisk/disk28

disk 43 64000/0xfa00/0x19 esdisk CLAIMED DEVICE 3PARdataVV

/dev/disk/disk43 /dev/rdisk/disk43

disk 44 64000/0xfa00/0x1a esdisk CLAIMED DEVICE 3PARdataVV

/dev/disk/disk44 /dev/rdisk/disk44

disk 45 64000/0xfa00/0x1b esdisk CLAIMED DEVICE 3PARdataVV

/dev/disk/disk45 /dev/rdisk/disk45

disk 46 64000/0xfa00/0x1c esdisk CLAIMED DEVICE 3PARdataVV

/dev/disk/disk46 /dev/rdisk/disk46

disk 47 64000/0xfa00/0x1d esdisk CLAIMED DEVICE 3PARdataVV

/dev/disk/disk47 /dev/rdisk/disk47

disk 48 64000/0xfa00/0x1e esdisk CLAIMED DEVICE 3PARdataVV

/dev/disk/disk48 /dev/rdisk/disk48

disk 49 64000/0xfa00/0x1f esdisk CLAIMED DEVICE 3PARdataVV

/dev/disk/disk49 /dev/rdisk/disk49

>> Check disk size

# diskinfo /dev/rdisk/disk19

SCSI describe of /dev/rdisk/disk19:

vendor: 3PARdata

product id: VV

type: direct access

size: 838860800 Kbytes

bytes per sector: 512

# diskinfo /dev/rdisk/disk20

SCSI describe of /dev/rdisk/disk20:

vendor: 3PARdata

product id: VV

type: direct access

size: 838860800 Kbytes

bytes per sector: 512

# diskinfo /dev/rdisk/disk26

SCSI describe of /dev/rdisk/disk26:

vendor: 3PARdata

product id: VV

type: direct access

size: 2097152 Kbytes

bytes per sector: 512

# diskinfo /dev/rdisk/disk27

SCSI describe of /dev/rdisk/disk27:

vendor: 3PARdata

product id: VV

type: direct access

size: 2097152 Kbytes

bytes per sector: 512

# diskinfo /dev/rdisk/disk28

SCSI describe of /dev/rdisk/disk28:

vendor: 3PARdata

product id: VV

type: direct access

size: 2097152 Kbytes

bytes per sector: 512

# diskinfo /dev/rdisk/disk43

SCSI describe of /dev/rdisk/disk43:

vendor: 3PARdata

product id: VV

type: direct access

size: 2097152 Kbytes

bytes per sector: 512

# diskinfo /dev/rdisk/disk44

SCSI describe of /dev/rdisk/disk44:

vendor: 3PARdata

product id: VV

type: direct access

size: 2097152 Kbytes

bytes per sector: 512

# diskinfo /dev/rdisk/disk45

SCSI describe of /dev/rdisk/disk45:

vendor: 3PARdata

product id: VV

type: direct access

size: 2097152 Kbytes

bytes per sector: 512

# diskinfo /dev/rdisk/disk46

SCSI describe of /dev/rdisk/disk46:

vendor: 3PARdata

product id: VV

type: direct access

size: 41943040 Kbytes

bytes per sector: 512

# diskinfo /dev/rdisk/disk47

SCSI describe of /dev/rdisk/disk47:

vendor: 3PARdata

product id: VV

type: direct access

size: 41943040 Kbytes

bytes per sector: 512

# diskinfo /dev/rdisk/disk48

SCSI describe of /dev/rdisk/disk48:

vendor: 3PARdata

product id: VV

type: direct access

size: 41943040 Kbytes

bytes per sector: 512

# diskinfo /dev/rdisk/disk49

SCSI describe of /dev/rdisk/disk49:

vendor: 3PARdata

product id: VV

type: direct access

size: 41943040 Kbytes

bytes per sector: 512

14. Create a special oracle device directory and use mknod to create device paths in oracle folder.

# mkdir /dev/oracle

====DATA===

# ll /dev/rdisk/disk19

crw-r----- 1 bin sys 13 0x000014 Jul 31 15:15 /dev/rdisk/disk19

# mknod /dev/oracle/asm_data01 c 13 0x000014

# ll /dev/oracle/asm_data01

crw-r--r-- 1 root sys 13 0x000014 Aug 29 12:08 /dev/oracle/asm_data01

====FRA==

# ll /dev/rdisk/disk20

crw-r----- 1 bin sys 13 0x000015 Jul 31 15:15 /dev/rdisk/disk20

# mknod /dev/oracle/asm_fra01 c 13 0x000015

# ll /dev/oracle/asm_fra01

crw-r--r-- 1 root sys 13 0x000015 Aug 29 12:19 /dev/oracle/asm_fra01

===OCR===

# ll /dev/rdisk/disk26

crw-r----- 1 bin sys 13 0x000016 Jul 31 16:42 /dev/rdisk/disk26

# mknod /dev/oracle/asm_ocr01 c 13 0x000016

# ll /dev/oracle/asm_ocr01

crw-r--r-- 1 root sys 13 0x000016 Aug 29 12:44 /dev/oracle/asm_ocr01

# ll /dev/rdisk/disk27

crw-r----- 1 bin sys 13 0x000017 Jul 31 16:42 /dev/rdisk/disk27

# mknod /dev/oracle/asm_ocr02 c 13 0x000017

# ll /dev/oracle/asm_ocr02

crw-r--r-- 1 root sys 13 0x000017 Aug 29 12:53 /dev/oracle/asm_ocr02

# ll /dev/rdisk/disk28

crw-r----- 1 bin sys 13 0x000018 Jul 31 16:42 /dev/rdisk/disk28

# mknod /dev/oracle/asm_ocr03 c 13 0x000018

# ll /dev/oracle/asm_ocr03

crw-r--r-- 1 root sys 13 0x000018 Aug 29 12:54 /dev/oracle/asm_ocr03

===VOTTING==

# ll /dev/rdisk/disk43

crw-r----- 1 bin sys 13 0x000019 Jul 31 16:48 /dev/rdisk/disk43

# mknod /dev/oracle/asm_vot01 c 13 0x000019

# ll /dev/oracle/asm_vot01

crw-r--r-- 1 root sys 13 0x000019 Aug 29 12:58 /dev/oracle/asm_vot01

# ll /dev/rdisk/disk44

crw-r----- 1 bin sys 13 0x00001a Jul 31 16:48 /dev/rdisk/disk44

# mknod /dev/oracle/asm_vot02 c 13 0x00001a

# ll /dev/oracle/asm_vot02

crw-r--r-- 1 root sys 13 0x00001a Aug 29 12:58 /dev/oracle/asm_vot02

# ll /dev/rdisk/disk45

crw-r----- 1 bin sys 13 0x00001b Jul 31 16:48 /dev/rdisk/disk45

# mknod /dev/oracle/asm_vot3 c 13 0x00001b

# ll /dev/oracle/asm_vot3

crw-r--r-- 1 root sys 13 0x00001b Aug 29 13:00 /dev/oracle/asm_vot3

==REDO==

# ll /dev/rdisk/disk46

crw-r----- 1 bin sys 13 0x00001c Jul 31 16:48 /dev/rdisk/disk46

# mknod /dev/oracle/asm_redo1 c 13 0x00001c

# ll /dev/oracle/asm_redo1

crw-r--r-- 1 root sys 13 0x00001c Aug 29 13:11 /dev/oracle/asm_redo1

# ll /dev/rdisk/disk47

crw-r----- 1 bin sys 13 0x00001d Jul 31 16:48 /dev/rdisk/disk47

# mknod /dev/oracle/asm_redo2 c 13 0x00001d

# ll /dev/oracle/asm_redo2

crw-r--r-- 1 root sys 13 0x00001d Aug 29 13:11 /dev/oracle/asm_redo2

# ll /dev/oracle/asm_redo2

crw-r--r-- 1 root sys 13 0x00001d Aug 29 13:11 /dev/oracle/asm_redo2

==CONTROL==

# ll /dev/rdisk/disk48

crw-r----- 1 bin sys 13 0x00001e Jul 31 16:48 /dev/rdisk/disk48

# mknod /dev/oracle/asm_control1 c 13 0x00001e

# ll /dev/oracle/asm_control1

crw-r--r-- 1 root sys 13 0x00001e Aug 29 13:20 /dev/oracle/asm_control1

# ll /dev/rdisk/disk49

crw-r----- 1 bin sys 13 0x00001f Jul 31 16:48 /dev/rdisk/disk49

# mknod /dev/oracle/asm_control2 c 13 0x00001f

# ll /dev/oracle/asm_control2

crw-r--r-- 1 root sys 13 0x00001f Aug 29 13:21 /dev/oracle/asm_control2

# ll /dev/oracle/

total 0

crw-r--r-- 1 root sys 13 0x00001e Aug 29 13:20 asm_control1

crw-r--r-- 1 root sys 13 0x00001f Aug 29 13:21 asm_control2

crw-r--r-- 1 root sys 13 0x000014 Aug 29 12:08 asm_data01

crw-r--r-- 1 root sys 13 0x000015 Aug 29 12:19 asm_fra01

crw-r--r-- 1 root sys 13 0x000016 Aug 29 12:44 asm_ocr01

crw-r--r-- 1 root sys 13 0x000017 Aug 29 12:53 asm_ocr02

crw-r--r-- 1 root sys 13 0x000018 Aug 29 12:54 asm_ocr03

crw-r--r-- 1 root sys 13 0x00001c Aug 29 13:11 asm_redo1

crw-r--r-- 1 root sys 13 0x00001d Aug 29 13:11 asm_redo2

crw-r--r-- 1 root sys 13 0x000019 Aug 29 12:58 asm_vot01

crw-r--r-- 1 root sys 13 0x00001a Aug 29 12:58 asm_vot02

crw-r--r-- 1 root sys 13 0x00001b Aug 29 13:00 asm_vot3

15. Disk Permission on device directory

# chown -R grid:asmadmin /dev/oracle/*

# chmod -R 660 /dev/oracle/*

# ll /dev/oracle/*

crw-rw---- 1 grid asmadmin 13 0x00001e Aug 29 13:20 /dev/oracle/asm_control1

crw-rw---- 1 grid asmadmin 13 0x00001f Aug 29 13:21 /dev/oracle/asm_control2

crw-rw---- 1 grid asmadmin 13 0x000014 Aug 29 12:08 /dev/oracle/asm_data01

crw-rw---- 1 grid asmadmin 13 0x000015 Aug 29 12:19 /dev/oracle/asm_fra01

crw-rw---- 1 grid asmadmin 13 0x000016 Aug 29 12:44 /dev/oracle/asm_ocr01

crw-rw---- 1 grid asmadmin 13 0x000017 Aug 29 12:53 /dev/oracle/asm_ocr02

crw-rw---- 1 grid asmadmin 13 0x000018 Aug 29 12:54 /dev/oracle/asm_ocr03

crw-rw---- 1 grid asmadmin 13 0x00001c Aug 29 13:11 /dev/oracle/asm_redo1

crw-rw---- 1 grid asmadmin 13 0x00001d Aug 29 13:11 /dev/oracle/asm_redo2

crw-rw---- 1 grid asmadmin 13 0x000019 Aug 29 12:58 /dev/oracle/asm_vot01

crw-rw---- 1 grid asmadmin 13 0x00001a Aug 29 12:58 /dev/oracle/asm_vot02

crw-rw---- 1 grid asmadmin 13 0x00001b Aug 29 13:00 /dev/oracle/asm_vot3

16. ASM Disk Header Clearing using dd

# dd if=/dev/zero of=/dev/oracle/asm_data01 bs=1024k count=1000

1000+0 records in

1000+0 records out

# dd if=/dev/zero of=/dev/oracle/asm_fra01 bs=1024k count=1000

1000+0 records in

1000+0 records out

# dd if=/dev/zero of=/dev/oracle/asm_ocr01 bs=1024k count=1000

1000+0 records in

1000+0 records out

# dd if=/dev/zero of=/dev/oracle/asm_ocr02 bs=1024k count=1000

1000+0 records in

1000+0 records out

# dd if=/dev/zero of=/dev/oracle/asm_ocr03 bs=1024k count=1000

1000+0 records in

1000+0 records out

# dd if=/dev/zero of=/dev/oracle/asm_vot01 bs=1024k count=1000

1000+0 records in

1000+0 records out

# dd if=/dev/zero of=/dev/oracle/asm_vot02 bs=1024k count=1000

1000+0 records in

1000+0 records out

# dd if=/dev/zero of=/dev/oracle/asm_vot3 bs=1024k count=1000

1000+0 records in

1000+0 records out

# dd if=/dev/zero of=/dev/oracle/asm_redo1 bs=1024k count=1000

1000+0 records in

1000+0 records out

# dd if=/dev/zero of=/dev/oracle/asm_control1 bs=1024k count=1000

1000+0 records in

1000+0 records out

17. Setting the Minor Number for Device Files

>> Log in as the "root" user.

>> Determine whether /dev/async exists. if the device does not exists, then use the following command to create it.

#mknod /dev/async c 101 0x4

>> Alternatively, you can set the minor number value to 0x104 using the following command:

#/sbin/mknod /dev/async c 101 0x104

>> If /dev/async exists, then determine the current value of the minor number, as shown in the following example:

# ll /dev/async

crw-rw-rw- 1 bin bin 101 0x000000 Apr 26 12:22 /dev/async

>> If the existing minor number of the file is not 0x4 or 0x14, then change it to an expected value using one of the following commands:

# rm /dev/async

# mknod /dev/async c 101 0x104

# ll /dev/async

crw-r--r-- 1 root sys 101 0x000104 Aug 29 15:04 /dev/async

>> async driver permission

# chown oracle:dba /dev/async

# chmod 660 /dev/async

18. Installation of Oracle 11gR2 (11.2.0.4.0) Grid Infrastructure

18.1. Login as "grid" user.
As the "grid" user (Grid Infrastructure software owner) start the installer by running "runInstaller".

18.2. Installation Option
Select radio button 'Install and Configure Grid Infrastructure for a Cluster' and click Next>

18.3. Installation Type
Select radio button 'Advanced Installation' and click Next >

18.4. Product Language
Accept 'English' as language and click Next >

18.5. Grid Plag and Play
Specify 'Cluster Name' & 'Scan Name', Unchecked Configure GNS and click Next >

18.6. Cluster Node Information
specify the node names and virtual IP address

18.7. Cluster Node Information (SSH Connectivity)
Use TAB 'SSH Connectivity' to configure SSH Connectivity. Use SETUP button to configure passwordless SSH connectivity.

18.8. Cluster Node Information (Validating node readiness)

18.9. Network Interface Usages
Click on 'Interface type' next to the Interface you want to use for your cluster and select the correct values for 'Public', 'Private' and 'Do Not Use' when finished click 'Next>.

18.10. Storage Option
Select radio button 'Automatic Storage Management (ASM)' click 'Next>.

18.11. Storage Option

Select the 'DiskGroup Name' specify the 'Redundancy' and tick the disks you want to use, [if candidate disks are not shown then check the permission for /dev...folder] when done click ' Next >'

[if not candidate disk disks found, then change discovery path to /dev/oracle/*].

Note: Note the number of voting disk that will be created depend on the redundancy level you specify: EXTERNAL will create 1 voting disk, NORMAL will create 3 voting disks, HIGH will create 5 voting disks.

18.12. ASM Password

18.13. Operating System Groups

Oracle ASM Administrator(OSASM) Group: asmadmin

Oracle ASM DBA(OSDBA for ASM) Group: asmdba

Oracle ASM Operator(OSOPER for ASM) Group: asmoper

18.14. Installation Location
Specify the location for ORACLE_BASE and for the software location and click 'Next >

18.15. Create Inventory
Specify the location for inventory directory and click 'Next >

18.16. Prerequisite Checks

18.16.1. Prerequisite Checks
We have ignore this warning.

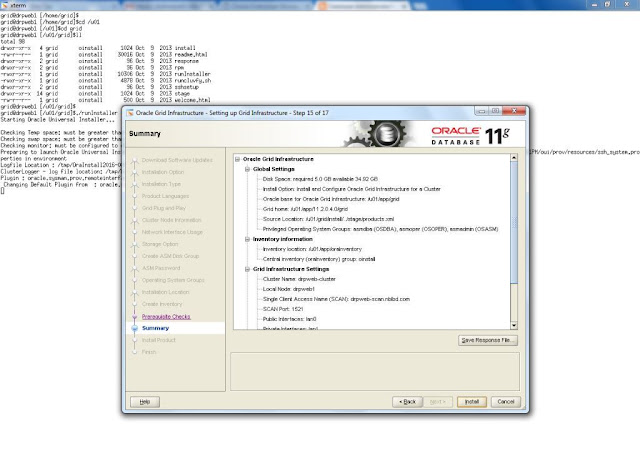

18.17. Summary

18.18. Install Product

18.19. Finish

19. Configure Listener for Additional Port

19.1. Login as "grid" user

19.2. Net configuration Assistance: Listener Configuration, Listener

19.3. Net configuration Assistance: Listener Configuration, Listener Name

19.4. Net configuration Assistance: Listener Configuration, Select protocols

19.5. Net configuration Assistance: Listener Configuration, Select port

19.6. Net configuration Assistance: Listener Configuration, More Listener?

19.7. Net configuration Assistance: Select a listener you want to start

19.8. Net configuration Assistance: Listener configuration complete!

19.9. Net configuration Assistance: Finish

20. Installation of Oracle 11gR2 (11.2.0.4.0) RDBMS Software
20.1. Login as "oracle" user

20.2. Configure Security Update: Provide your email address, tick the check box and provide oracle support password if you want to receive security updates from oracle support and click ' Next >'

20.3. Download Software Update: Skip software updates and click ' Next>'

20.4. Installation Option: Select the option 'Install Database Software Only' and click ' Next>'

20.5. Installation Option: Select the option 'Oracle Real Application Clusters database installation' and click ' Next>'

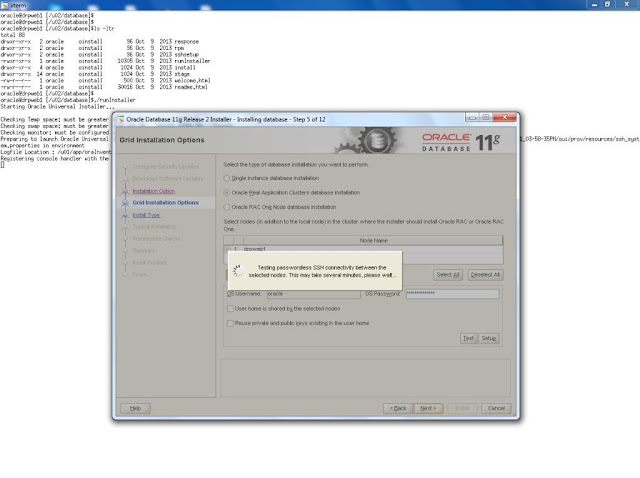

20.5.1 Use the 'SSH Connectivity' button to configure/test the passwordless SSH connectivity between nodes. Type in the OS password for the oracle user and click setup.

20.6. Product Language: To confirm English as selected language and click ' Next >'

20.7. Database Edition: Make sure radio button 'Enterprise Edition' is ticked &click ' Next>'

20.8. Installation Location: Specify path for oracle base(ORACLE_BASE) and location where we want to store the software (ORACLE_HOME). Click ' Next>'

20.9. Installation Location: Specify path for oracle base(ORACLE_BASE) and location where we want to store the software (ORACLE_HOME). Click ' Next>'

20.10. Prerequisite Check: Oracle Universal Installer performs prerequisite checks.

20.11. Summary

20.12. Install Product

20.13 Finish: Installation Successful.

21. Create ASM Diskgroups

21.1 Login as "grid" user.

21.2 Click 'Create' to create a new diskgroup. Then, type in a name for the diskgroup, select the redundancy EXTERNAL and mark the tick box for the disks you want to assign to the new diskgroup. we have used allocation unit size 4MB for DATA. Finally click 'Ok' button.

21.3 Click 'Create' to create diskgroup for the flash recovery area. then, type in a name for the diskgroup, select the redundancy EXTERNAL we want to provide and mark the tick box for the disks you want to assign to the new diskgroup. we have used allocation unit size 4MB for FRA. Finally click 'Ok' button.

21.4 Click 'Create' to create diskgroup for the REDO. then, type in a name for the diskgroup, select the redundancy EXTERNAL and mark the tick box for the disks and assign to the new diskgroup. we have used allocation unit size 1MB for REDO. Finally click 'Ok' button.

21.5 Click 'Create' to create diskgroup for the VOTING. then, type in a name for the diskgroup, select redundancy NORMAL and mark the tick box for the disks and assign to the new diskgroup. we have used allocation unit size 1MB for VOTING. Finally click 'Ok' button.

21.6 Exit

22. Relocating voting disk file from +OCR diskgroup to +VOTING diskgroup

At time of grid installation, voting files created on +OCR diskgroup as we chosen +OCR diskgroup. Now, we will separate voting files from +OCR diskgroup to +VOTING diskgroup. Below is the procedure:

OCR: It created at the time of Grid Installation. It’s store information to manage Oracle cluster-ware and it’s component such as RAC database, listener, VIP, Scan IP & Services. Minimum 1 and maximum 5 copy of OCR is possible.

Voting Disk: It manages information about node membership. Each voting disk must be accessible by all nodes in the cluster. If any node is not passing heat-beat across other note or voting disk, then that node will be evicted by Voting disk. Minimum 1 and maximum 15 copy of voting disk is possible.

>>To find location of current OCR:
Login as "grid" user.

grid@drpweb1 [/home/grid]$

grid@drpweb1 [/home/grid]$ocrcheck

Status of Oracle Cluster Registry is as follows :

Version : 3

Total space (kbytes) : 262120

Used space (kbytes) : 2576

Available space (kbytes) : 259544

ID : 829362325

Device/File Name : +OCR

Device/File integrity check succeeded

Device/File not configured

Cluster registry integrity check succeeded

Logical corruption check bypassed due to non-privileged user

grid@drpweb1 [/home/grid]$

>>To find current location of Voting disk:

grid@drpweb1 [/home/grid]$crsctl query css votedisk

## STATE File Universal Id File Name Disk group

-- ----- ----------------- --------- ---------

1. ONLINE 3175bf2cd9f94f4bbfe4e11a10c9e0cb (/dev/oracle/asm_ocr01) [OCR]

2. ONLINE 7d77fbd9e7944fc6bf79be2d40ef7201 (/dev/oracle/asm_ocr02) [OCR]

3. ONLINE 58fff2878e824f31bf3bdf694ab96e24 (/dev/oracle/asm_ocr03) [OCR]

Located 3 voting disk(s).

grid@drpweb1 [/home/grid]$

>> Relocate or multiplexing Voting disk to another disk-group (With normal redundancy)

grid@drpweb1 [/home/grid]$crsctl replace votedisk +VOTING

Successful addition of voting disk 4dec4a89ee354f82bf83e1db3a24aff8.

Successful addition of voting disk 59f07ff6eb5c4f5dbf8ca30fd5651882.

Successful addition of voting disk 101c45ec173b4f60bf88fce940a0ae10.

Successful deletion of voting disk 3175bf2cd9f94f4bbfe4e11a10c9e0cb.

Successful deletion of voting disk 7d77fbd9e7944fc6bf79be2d40ef7201.

Successful deletion of voting disk 58fff2878e824f31bf3bdf694ab96e24.

Successfully replaced voting disk group with +VOTING.

CRS-4266: Voting file(s) successfully replaced

grid@drpweb1 [/home/grid]$

>>New location of Voting disk:

grid@drpweb1 [/home/grid]$crsctl query css votedisk

## STATE File Universal Id File Name Disk group

-- ----- ----------------- --------- ---------

1. ONLINE 4dec4a89ee354f82bf83e1db3a24aff8 (/dev/oracle/asm_vot01) [VOTING]

2. ONLINE 59f07ff6eb5c4f5dbf8ca30fd5651882 (/dev/oracle/asm_vot02) [VOTING]

3. ONLINE 101c45ec173b4f60bf88fce940a0ae10 (/dev/oracle/asm_vot3) [VOTING]

Located 3 voting disk(s).

grid@drpweb1 [/home/grid]$

23. Create database using DBCA
23.1. Login as "oracle" user
> select 'Oracle Real Application Clusters database' and click 'Next >'

23.2. Select the option that you want to perform, Choose option 'Create a Database' and click 'Next >'

23.3. Select the database template that you want to use for your database and click ' next >'

23.4. Database Identification, Chose configuration type (Admin-Managed), Write Global database name and SID prefix and click ' next >'

23.5. Management Options, select the options you want use to manage database and click 'Next

23.6. Database Credentials

23.7. Database File Location, Select the diskgroup you created for the database files and Click on 'Multiplex Redo logs and control files.

>In the popup window define the diskgroup that should contain control files and redo log files and the diskgroup that should contain the mirrored files.

23.8. Specify ASMSNMP password specific to ASM. When all are correct then click on Next >

23.9. Recovery configuration, Specify the diskgroup that was created for the flash recovery area and define the size. if the size is smaller than recommended a warning will popup. then click on Next >

23.10. Database Content. Select if want to have sample schema created in database and click 'Next>'

23.11. Initialization Parameters.
>>Memory Settings, Memory size 60% of total system memory.

>>Memory Settings, Sizing, block size and process.

>>Memory Settings, Character sets.

>>Memory Settings, Connection Mode

23.12. Database Storage
>> Storage

>> Control files.

>> Data files.

>> Redo Log files.

23.13. Creation Options, create database

23.14. Create database summary

23.15. Database Creation complete.

24. endpoints_listener.ora file in "grid" user LISTENERDR1_DRPWEB1=(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=TCP)(HOST=drpweb1-vip)(PORT=1525))(ADDRESS=(PROTOCOL=TCP)(HOST=xxx.xx.xxx.26)(PORT=1525)(IP=FIRST)))) # line added by Agent

LISTENERDR_DRPWEB1=(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=TCP)(HOST=drpweb1-vip)(PORT=1527))(ADDRESS=(PROTOCOL=TCP)(HOST=xxx.xx.xxx.26)(PORT=1527)(IP=FIRST)))) # line added by Agent
LISTENERDR2_DRPWEB1=(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=TCP)(HOST=drpweb1-vip)(PORT=1526))(ADDRESS=(PROTOCOL=TCP)(HOST=xxx.xx.xxx.26)(PORT=1526)(IP=FIRST)))) # line added by Agent
LISTENER_DRPWEB1=(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=TCP)(HOST=drpweb1-vip)(PORT=1521))(ADDRESS=(PROTOCOL=TCP)(HOST=xxx.xx.xxx.26)(PORT=1521)(IP=FIRST)))) # line added by Agent

>> listener.ora file in "grid" user
LISTENERDR1=(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENERDR1)))) # line added by Agent
LISTENERDR=(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENERDR)))) # line added by Agent
LISTENERDR2=(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENERDR2)))) # line added by Agent
LISTENER=(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENER)))) # line added by Agent
LISTENER_SCAN1=(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENER_SCAN1)))) # line added by Agent
ENABLE_GLOBAL_DYNAMIC_ENDPOINT_LISTENER_SCAN1=ON # line added by Agent
ENABLE_GLOBAL_DYNAMIC_ENDPOINT_LISTENER=ON # line added by Agent
ENABLE_GLOBAL_DYNAMIC_ENDPOINT_LISTENERDR2=ON # line added by Agent
ENABLE_GLOBAL_DYNAMIC_ENDPOINT_LISTENERDR=ON # line added by Agent

ENABLE_GLOBAL_DYNAMIC_ENDPOINT_LISTENERDR1=ON # line added by Agent

25. tnsnames.ora file in "oracle" user

DRPWEB =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = drpweb-scan.xxx.com)(PORT = 1521))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = drpweb.xxx.com)
)
)

Database Administrator's blog

Pages

Tuesday, August 30, 2016

Single Node Oracle 11g Release 2 (11.2.0.4.0) RAC Configuration on HP-UX Itanium (11.31) Server
